At T&D Specialties, precision is our passion. Every part we produce—whether for aerospace, medical, or industrial applications—must meet exacting standards. One tool that plays a pivotal role in achieving this precision is the test indicator, a small but mighty device that ensures accuracy in measurements and alignments. In this blog, we’ll explore what test indicators are, how they work, why they’re indispensable in a machine shop, and how they complement tools like our T&D Micro Vise. Let’s dive into why test indicators are truly the unsung heroes of precision machining.
What Are Test Indicators?

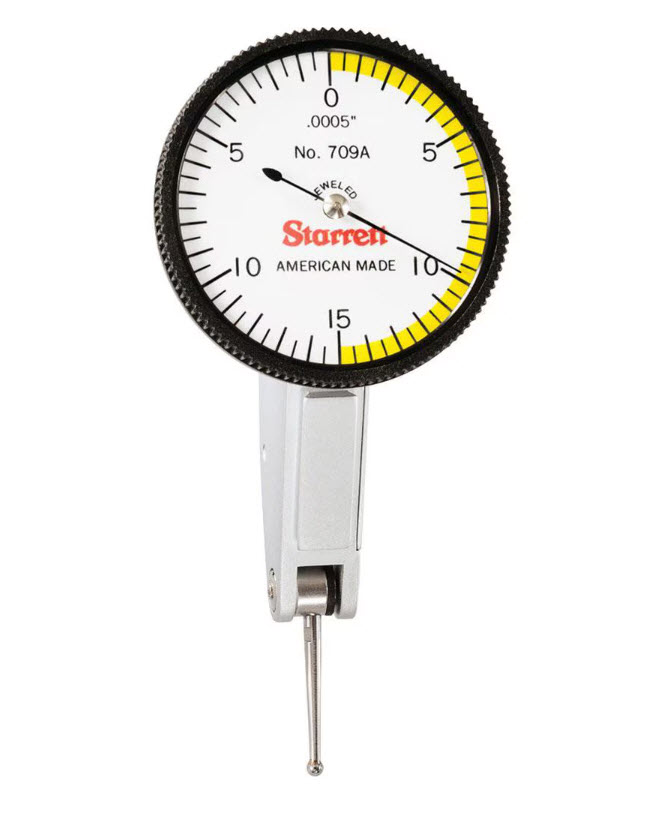

A test indicator, also known as a lever-type dial indicator or dial test indicator (DTI), is a precision measuring tool used to detect small deviations in distance, alignment, or surface flatness. Unlike standard dial indicators, which are better suited for larger measurements, test indicators excel at detecting minute variations—often down to 0.0001 inches (0.0025 mm) or less.
Test indicators consist of a small, pivoting lever arm with a contact point that moves in response to surface changes. This movement is transmitted through a gear mechanism to a dial, where a needle indicates the displacement on a graduated scale. The compact size and sensitivity of test indicators make them ideal for tight spaces and high-precision tasks.
Test indicators come in various styles, including:
- Horizontal models: Common for general use, with the dial parallel to the workpiece.
- Vertical models: Designed for applications where the indicator is mounted perpendicular to the surface.
- Universal models: Adjustable for multiple orientations.
At T&D Specialties, we rely on test indicators to ensure our machined parts meet the tightest tolerances, from checking runout on a shaft to verifying flatness on a critical component.
How Do Test Indicators Work?
The operation of a test indicator is elegantly simple yet highly precise. Here’s a step-by-step look at how they function:
- Setup: The test indicator is mounted securely, often on a magnetic base, height gauge, or fixture like our T&D Micro Vise. The contact point is positioned to touch the workpiece surface lightly.
- Contact and Movement: As the workpiece or indicator moves, the contact point follows the surface’s contours. Even tiny deviations (e.g., a bump or dip) cause the lever arm to pivot.
- Amplification: The lever’s movement is amplified through a series of gears or levers inside the indicator, translating small displacements into larger needle movements on the dial.
- Reading the Dial: The dial displays the deviation in units like thousandths of an inch (0.001”) or hundredths of a millimeter (0.01 mm). Positive or negative readings indicate whether the surface is higher or lower than the reference point.
- Interpretation: Machinists interpret the readings to assess alignment, flatness, concentricity, or other geometric properties, comparing them to blueprint specifications.

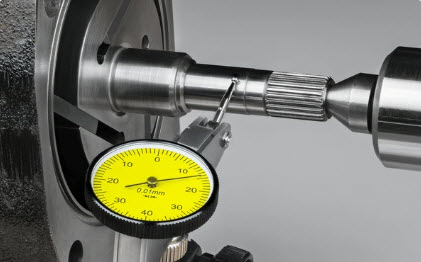

For example, to check the concentricity of a turned shaft, a machinist might rotate the shaft while the test indicator’s contact point rides along its surface. Any needle movement indicates runout, revealing whether the shaft is perfectly centered.
Common Applications of Test Indicators
Test indicators are versatile tools used across a range of precision tasks in a machine shop. Here are some of their most common applications at T&D Specialties:

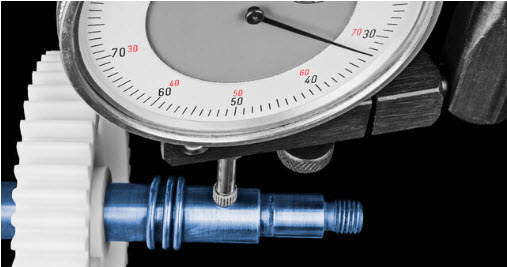

- Checking Runout: Measuring the concentricity or straightness of rotating parts like shafts, spindles, or lathe workpieces.
- Verifying Flatness: Detecting surface deviations on machined parts, often in conjunction with a surface plate.
- Aligning Workpieces: Ensuring components are properly aligned in a mill, lathe, or fixture before machining.
- Inspecting Tolerances: Confirming that parts meet tight geometric tolerances, such as parallelism or perpendicularity.
- Setup Precision: Fine-tuning the position of tools or workpieces during setup, especially for complex multi-axis machining.
For small, intricate parts, we often pair test indicators with our T&D Micro Vise, which holds components securely while allowing precise positioning for accurate measurements.
Why Are Test Indicators So Important?
Test indicators may be small, but their impact on precision machining is enormous. Here’s why they’re an incredibly important tool in any machine shop:
1. Unmatched Sensitivity
- Test indicators can detect deviations as small as 0.00005 inches (0.001 mm), making them essential for applications where even a hair’s breadth of error is unacceptable. This sensitivity ensures parts meet the strictest tolerances.
2. Versatility in Tight Spaces
- Their compact design allows test indicators to fit into confined areas where larger tools, like standard dial indicators, can’t reach. This makes them ideal for inspecting small bores, grooves, or complex geometries.
3. Reliability and Repeatability
- When properly calibrated, test indicators provide consistent, repeatable measurements. This reliability is critical for maintaining quality across production runs.
4. Error Prevention
- By catching misalignments or surface imperfections early, test indicators help prevent costly rework or scrapped parts. A quick check with a test indicator can save hours of machining time.
5. Complementary to Other Tools
- Test indicators work seamlessly with other precision tools, such as surface plates, height gauges, and vises. For example, our T&D Micro Vise enhances the indicator’s effectiveness by holding small parts steady during inspection, ensuring accurate readings.
6. Broad Industry Impact
- From aerospace components that demand perfect concentricity to medical devices requiring flawless surfaces, test indicators are critical across industries. Their ability to ensure precision directly impacts safety, performance, and reliability.
At T&D Specialties, test indicators are a cornerstone of our quality control process. They help us deliver parts that not only meet but exceed our clients’ expectations.
Best Practices for Using Test Indicators
To get the most out of test indicators, proper use and care are essential. Here are some tips we follow at T&D Specialties:
- Secure Mounting: Mount the indicator firmly to avoid vibrations, which can skew readings. Use a stable base or a fixture like the T&D Micro Vise for small parts.

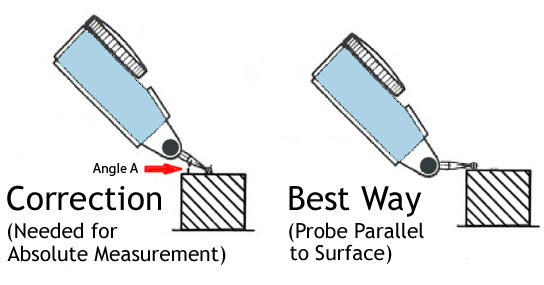

- Light Contact Pressure: Apply just enough pressure to keep the contact point touching the surface. Excessive force can bend the lever or distort measurements.
- Zero the Indicator: Before measuring, set the indicator to zero against a known reference (e.g., a gauge block or surface plate) to ensure accurate readings.
- Cleanliness: Keep the contact point and workpiece free of debris, as even a speck of dust can affect precision.
- Calibration: Regularly calibrate test indicators to maintain accuracy. Check for wear in the lever mechanism or contact point.
- Avoid Over-Range Use: Don’t push the indicator beyond its measurement range, as this can damage the internal gears and reduce accuracy.
Challenges and Considerations
While test indicators are powerful tools, they come with challenges:
- Limited Range: Test indicators have a smaller measurement range (typically 0.030” or less) compared to dial indicators, so they’re not suited for large deviations.
- Fragility: The delicate lever mechanism is prone to damage if mishandled. Careful storage and use are critical.
- Skill Required: Interpreting readings and setting up the indicator correctly require experience, especially for complex geometries.
Choosing the right test indicator (e.g., resolution, range, or style) for the job is also important. At T&D Specialties, our machinists are trained to select and use the best tools for each project, ensuring optimal results.
Enhancing Precision with the T&D Micro Vise
For small or delicate parts, securing the workpiece during measurement is critical to accurate test indicator readings. Our T&D Micro Vise is the perfect companion for test indicator setups. Its compact design and precision clamping mechanism hold parts firmly without marring surfaces, allowing machinists to position components exactly where needed. Whether you’re checking runout on a tiny medical component or aligning a micro-machined part, the T&D Micro Vise ensures stability and repeatability, making test indicator measurements more reliable.
Trust T&D Specialties for Precision You Can Measure
Test indicators are more than just tools—they’re the key to achieving the precision that defines T&D Specialties. By combining these sensitive instruments with our expertise, advanced equipment, and accessories like the T&D Micro Vise, we deliver parts that meet the most demanding specifications. Whether you’re designing aerospace components, medical devices, or industrial parts, we’re here to ensure every measurement counts.
Have a project that demands precision? Contact T&D Specialties today to discuss your needs or request a quote. Let us show you how our commitment to accuracy can bring your vision to life.
