At T&D Specialties, we excel at machining small, intricate parts for industries like aerospace, medical, and electronics, achieving tolerances as tight as ±0.0003”. Our Swiss turn machines are key to this precision, enabling us to produce complex components with exceptional accuracy and efficiency. In this blog, we’ll explore what Swiss turn machines are, how they work, their advantages for small-part production, and how tools like our T&D Micro Vise enhance their performance. Discover why Swiss machining is a game-changer for precision manufacturing.

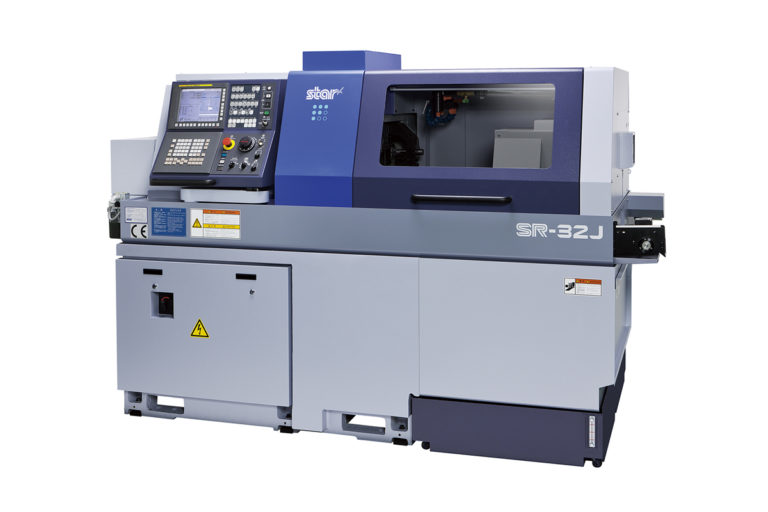

What Are Swiss Turn Machines?
Swiss turn machines, also known as Swiss-type lathes, are advanced CNC lathes designed for high-precision machining of small, complex parts. Originally developed for Swiss watchmaking, they’re now widely used for components with high length-to-diameter ratios, like medical screws or aerospace fasteners. With capacities up to 32mm, as we utilize at T&D, Swiss machines feature a sliding headstock and guide bushing, ensuring stability for slender parts. Their multi-axis capabilities and live tooling make them ideal for intricate, high-volume production.
How Do Swiss Turn Machines Work?
Swiss turn machines operate uniquely to deliver precision:
- Material Feed: A bar feeder advances raw material (e.g., titanium, stainless steel, or plastics) through a collet in the sliding headstock, supporting continuous production for Kanban orders.
- Guide Bushing: The bar is supported by a guide bushing near the cutting tools, minimizing deflection for parts as small as 0.032” in diameter.

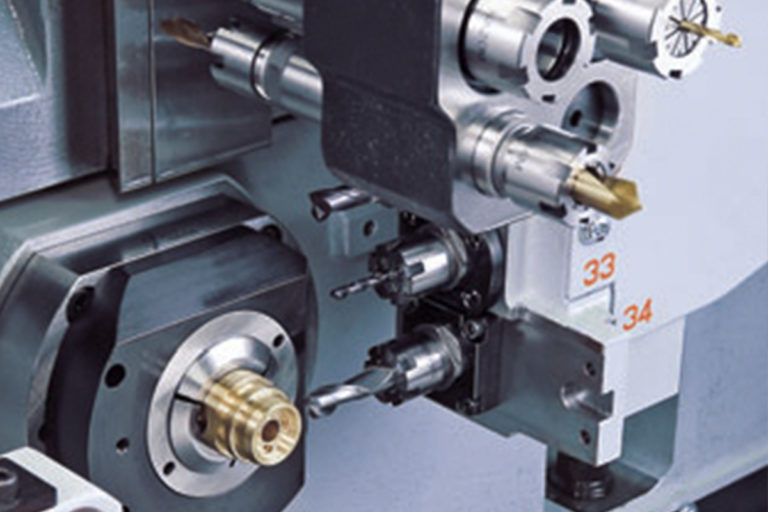

- Multi-Axis Machining: Multiple axes (up to 12) and live tools enable simultaneous turning, milling, and threading, creating complex features in one setup.
- Secondary Spindle: A sub-spindle performs back-side operations, completing parts without manual handling.
- CNC Programming: G-code, often generated via CAM software, controls toolpaths, optimized for materials like 17-4 PH stainless steel (using 250–300 SFPM, as discussed).
- Inspection: Tools like test indicators and our T&D Micro Vise ensure parts meet tight tolerances during quality checks.
This process allows T&D to machine micro-components with precision and speed.
Benefits of Swiss Turn Machines
Swiss turn machines offer unmatched advantages:
- Precision: Tolerances of ±0.0003” for critical applications like medical implants.
- Efficiency: Single-setup machining reduces cycle times, ideal for high-volume Kanban production.
- Complexity: Multi-axis and live tooling handle intricate geometries, like multi-start threads.
- Versatility: Suitable for metals (aluminum, BeCu) and plastics, with platings like black anodize.
- Chip Control: Advanced features break chips in tough materials, ensuring smooth operation.
Enhancing Precision with T&DOur Swiss turn machines, paired with the T&D Micro Vise, ensure stable setups for small parts, achieving flawless results. Ready to leverage Swiss machining for your project? Contact T&D Specialties today for a quote and experience precision at its best.
