At T&D Specialties, we know that precision is non-negotiable in machining. Whether we’re crafting aerospace components or intricate medical parts, every measurement, cut, and inspection must be spot-on. One unsung hero in achieving this level of accuracy is the surface plate—a seemingly simple tool that forms the backbone of quality control and precision work in any machine shop. In this blog, we’ll dive into what surface plates are, how they’re used, why they’re critical to manufacturing, and how tools like our T&D Micro Vise complement their use.
What Is a Surface Plate?
A surface plate is a flat, highly precise reference surface used in machining, metrology, and quality control. Typically made from granite, cast iron, or (less commonly) glass, surface plates provide a stable, level plane for measuring, inspecting, and setting up parts and tools. Their defining feature is their exceptional flatness, often accurate to within a few millionths of an inch.

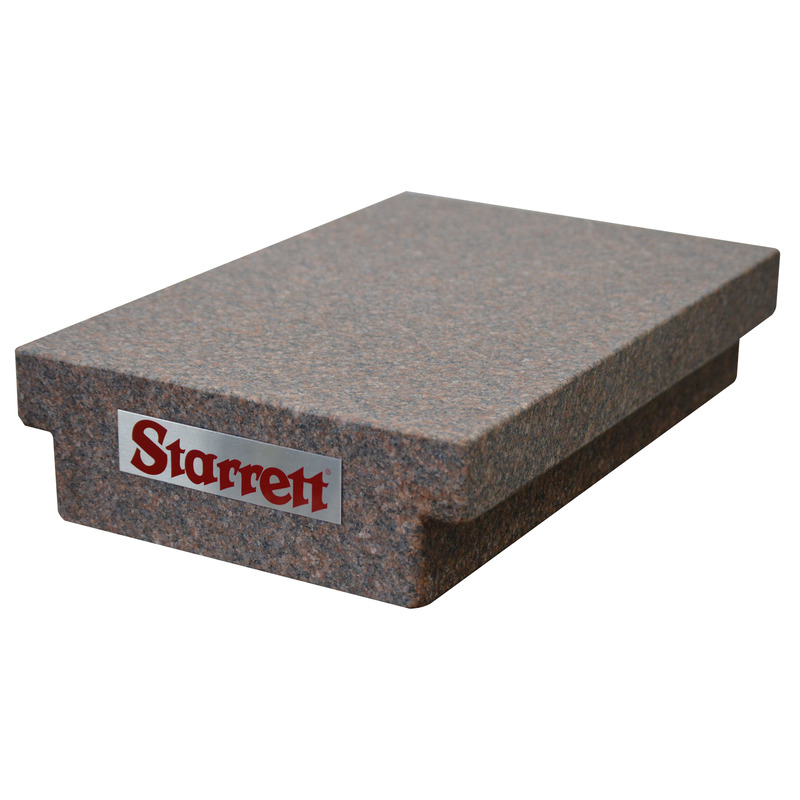

Granite is the material of choice for most modern surface plates due to its durability, thermal stability, and resistance to corrosion. These plates are quarried, precision-ground, and lapped to achieve a mirror-smooth, flat surface. Cast iron plates, while still used in some shops, are heavier and more prone to rust but were common in older setups.

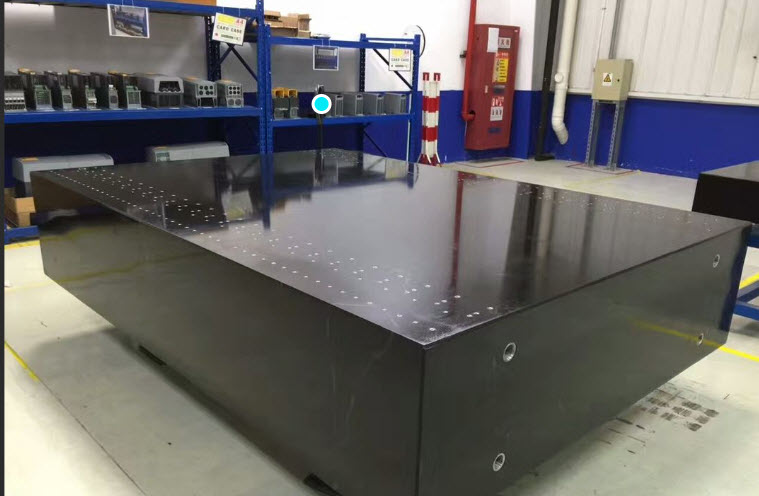

Surface plates come in various sizes, from small benchtop models to massive plates weighing thousands of pounds. They’re often mounted on sturdy stands to ensure stability and are rated by their flatness tolerance, with Grade AA (laboratory grade) being the most precise, followed by Grade A (inspection grade) and Grade B (toolroom grade).
How Are Surface Plates Used?
Surface plates are the foundation for a wide range of tasks in a machine shop. Here’s how they’re typically used at T&D Specialties and beyond:
1. Precision Measurement

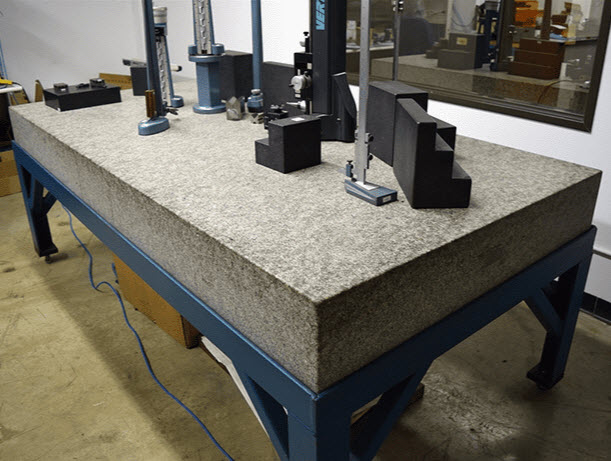

- Surface plates serve as a reference plane for measuring the flatness, parallelism, or squareness of a part. Tools like height gauges, dial indicators, or coordinate measuring machines (CMMs) are used on the plate to check dimensions against blueprint specifications.
- Example: To verify that a machined block is perfectly flat, we place it on the surface plate and use a dial indicator to detect any deviations.
2. Inspection and Quality Control
- During quality checks, surface plates provide a stable base for inspecting parts. By pairing the plate with precision tools like gauge blocks or surface plate accessories, machinists ensure parts meet tight tolerances.
- Example: A cylindrical part’s perpendicularity can be checked by placing it on a surface plate with a precision square.
3. Setup and Layout
- Surface plates are used to set up workpieces or fixtures before machining. Machinists mark or scribe layouts directly on the plate or use it to align components accurately.
- Example: When setting up a complex assembly, our T&D Micro Vise can be mounted on a surface plate to hold small parts securely while ensuring precise alignment.
4. Calibration and Tool Verification
- Surface plates are critical for calibrating measuring tools like micrometers or verifying the accuracy of other reference surfaces. Their known flatness ensures reliable calibration results.
- Example: A height gauge’s base is checked against the plate to confirm it’s level before use.
5. Assembly and Fixturing
- In precision assembly, surface plates provide a flat surface for building or aligning components. Fixtures or vises, like our T&D Micro Vise, can be used to hold parts in place during assembly.
- Example: Assembling a multi-part medical device requires a surface plate to ensure all components are aligned within microns.
Why Are Surface Plates So Important?
Surface plates may look like simple slabs of stone or metal, but their role in precision manufacturing is profound. Here’s why they’re indispensable:
1. Guaranteed Accuracy
- A surface plate’s flatness is its superpower. Even the slightest deviation in a reference surface can throw off measurements, leading to defective parts. Grade AA plates, for instance, are flat to within 0.000025 inches (25 millionths) over their entire surface, ensuring unparalleled accuracy.
2. Consistency Across Processes
- From initial layout to final inspection, surface plates provide a consistent reference point. This eliminates variables that could creep in when using less reliable surfaces, ensuring every step of the process is aligned.
3. Versatility
- Surface plates support a wide range of tasks, from basic measurements to complex setups. Their versatility makes them a must-have in any shop, regardless of the industry served.
4. Durability and Stability
- Granite surface plates are incredibly durable, resisting wear, thermal expansion, and environmental factors like humidity. This stability ensures long-term reliability, even in demanding shop conditions.
5. Cost-Effective Precision
- While high-quality surface plates are an investment, their longevity and ability to prevent costly errors make them cost-effective. A single inaccurate measurement can lead to scrapped parts or rework, but a surface plate helps avoid these pitfalls.
At T&D Specialties, our surface plates are a cornerstone of our quality assurance process. They ensure that every part we produce—whether for aerospace, automotive, or medical applications—meets the exacting standards our clients expect.
Best Practices for Using and Maintaining Surface Plates
To maximize the lifespan and accuracy of a surface plate, proper use and care are essential. Here are some tips we follow at T&D Specialties:
- Keep It Clean: Dust, oil, or debris can compromise the plate’s flatness. Clean the surface regularly with a non-abrasive cleaner (like alcohol or specialized granite cleaner) and a soft cloth. Avoid acidic or abrasive substances.
- Use Covers: When not in use, cover the plate to protect it from dust or accidental damage. Many shops use fitted covers or even simple cloths.
- Avoid Overloading: Don’t place excessively heavy parts or tools on the plate, as this can cause warping or damage. Check the plate’s weight capacity before use.
- Distribute Weight: When placing parts or fixtures, distribute weight evenly to prevent localized stress. Our T&D Micro Vise is ideal for holding small, lightweight parts without overloading the plate.
- Regular Calibration: Have the plate inspected and recalibrated periodically by a certified technician to ensure it remains within tolerance. Granite plates can develop wear spots over time, especially in high-use areas.

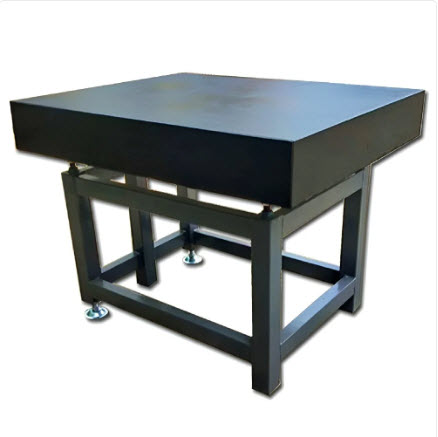

- Proper Support: Ensure the plate is mounted on a stable, level stand designed for its weight. Uneven support can cause the plate to flex, affecting accuracy.
Challenges and Considerations
While surface plates are invaluable, they come with challenges that machinists and engineers should keep in mind:
- Size Limitations: Large parts may require oversized plates, which are expensive and take up significant shop space. For smaller precision work, our T&D Micro Vise paired with a compact plate is often sufficient.
- Environmental Sensitivity: While granite is thermally stable, extreme temperature swings or vibrations can affect accuracy. Keep plates in a controlled environment when possible.
- Cost vs. Grade: Higher-grade plates (e.g., Grade AA) are pricier but necessary for ultra-precise applications. Choose the grade that matches your needs to avoid overspending.
Complementing Surface Plates with the T&D Micro Vise
For precision work on a surface plate, the right fixturing is crucial. Our T&D Micro Vise is designed to hold small, delicate parts securely without compromising the plate’s surface. Its compact design and precision engineering make it perfect for tasks like inspection, assembly, or layout on a surface plate. Whether you’re aligning tiny medical components or setting up intricate aerospace parts, the T&D Micro Vise ensures repeatability and accuracy, enhancing the plate’s utility.
Why Trust T&D Specialties for Precision Work?
Surface plates are more than just tools—they’re the foundation of precision in our shop. At T&D Specialties, we leverage high-quality surface plates, advanced metrology equipment, and skilled craftsmanship to deliver parts that meet the tightest tolerances. Our commitment to quality extends to every tool we use, including our T&D Micro Vise, which helps us maximize the potential of our surface plates.
Ready to elevate your next project with precision machining? Contact T&D Specialties today to discuss your needs or request a quote. Let us show you how our expertise and tools can bring your designs to life with unmatched accuracy.
