At T&D Specialties, we’re passionate about delivering precision-machined parts that meet the highest standards for industries like aerospace, medical, and industrial manufacturing. One technique that sets our shop apart is form tapping (also called roll tapping), a cutting-edge method for creating internal threads with superior strength and quality. In this blog, we’ll explore what form tapping is, how it works, its benefits, how it differs from traditional cut tapping, and why it’s a game-changer in precision machining. We’ll also highlight how tools like our T&D Micro Vise enhance the process. Let’s dive into the world of form tapping and why it’s a preferred choice for high-quality threading.
What Is Form Tapping?
Form tapping is a chipless threading process that creates internal threads by deforming the workpiece material rather than cutting it away. Unlike traditional cut tapping, which removes material to form threads, form tapping uses a specialized tool called a roll tap or forming tap to displace material, shaping it into threads. This results in stronger, smoother threads with no chips or debris.

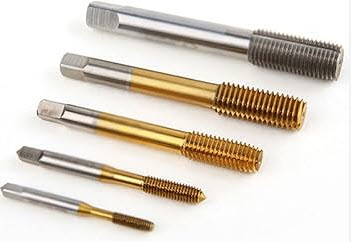

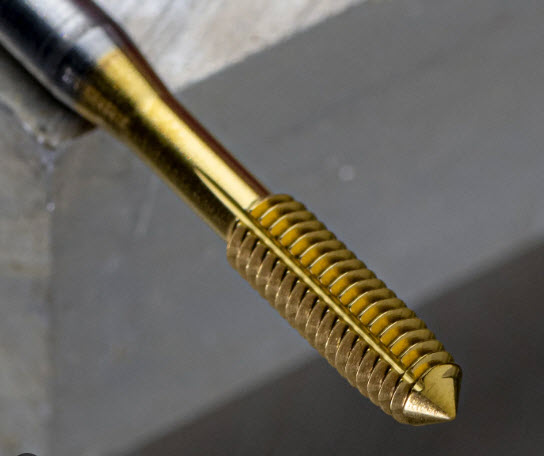

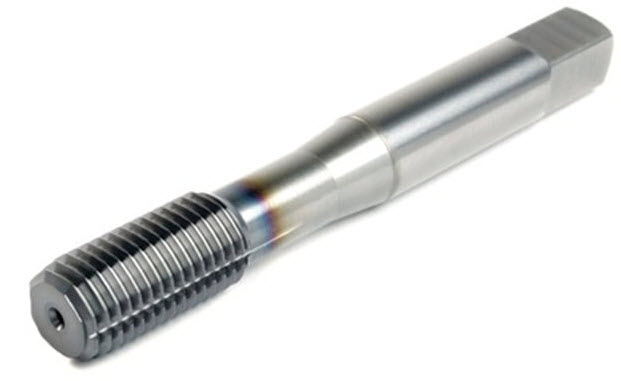

Form taps have a lobed, non-cutting design that presses into the workpiece, cold-forming the material to create the thread profile. The process is ideal for materials like aluminum, stainless steel, copper, and other ductile alloys that can be plastically deformed without cracking. At T&D Specialties, we use form tapping to produce high-strength threads for critical applications, ensuring durability and precision.
How Does Form Tapping Work?
Form tapping is a precise, efficient process that requires careful setup and execution. Here’s how it works:
- Preparation: A hole is drilled in the workpiece to a specific diameter, slightly larger than the thread’s minor diameter. The hole size is critical, as it must allow enough material for the tap to displace without excessive force. For example, a form tap requires a larger pre-drill diameter than a cut tap for the same thread size.
- Setup: The workpiece is secured in a CNC machine, tapping head, or manual tapping setup. For small or delicate parts, our T&D Micro Vise provides stable, precise clamping to prevent movement during tapping.

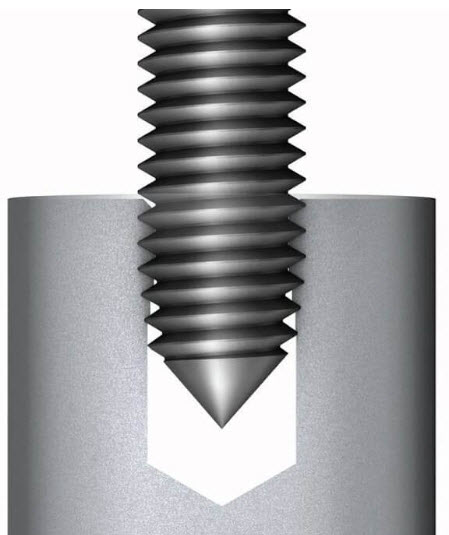

- Tapping Process: The form tap, mounted in the machine’s spindle, rotates and advances into the pre-drilled hole. The tap’s lobes press against the hole’s walls, plastically deforming the material to form the thread profile. No material is removed, and no chips are produced.
- Lubrication: A high-quality lubricant or coolant is applied to reduce friction, heat, and tool wear, ensuring smooth thread formation and longer tap life.
- Completion: The tap is reversed and withdrawn, leaving clean, strong threads. The workpiece is inspected for thread quality using gauges or other metrology tools.
For example, to create M3 threads in an aluminum medical component, we might use a carbide form tap in a CNC machine, with the part held securely in our T&D Micro Vise. The result is a precise, chip-free thread ready for assembly.
Form Tapping vs. Cut Tapping: Key Differences
While both form tapping and cut tapping create internal threads, they differ significantly in process, results, and applications. Here’s a comparison:
- Material Removal:
- Cut Tapping: Uses a fluted tap to cut material from the hole, forming threads by removing chips. This leaves a slightly weaker thread due to material loss.
- Form Tapping: Displaces material without removing it, creating threads by reshaping the workpiece. This preserves material and increases thread strength.
- Chip Production:
- Cut Tapping: Produces chips, which can clog the hole, contaminate cleanroom environments, or require additional cleanup.
- Form Tapping: Chipless process, ideal for applications where cleanliness is critical, like medical or aerospace parts.
- Thread Strength:
- Cut Tapping: Threads are slightly weaker because material is removed, reducing the thread’s cross-sectional area.
- Form Tapping: Threads are stronger due to cold-working, which compresses and work-hardens the material, improving fatigue resistance.
- Surface Finish:
- Cut Tapping: Threads may have rougher surfaces due to cutting action, potentially requiring secondary finishing.
- Form Tapping: Produces smoother, more polished threads, enhancing fit and performance.
- Tool Life:
- Cut Tapping: Cutting taps wear faster due to abrasive chip formation, especially in hard materials.
- Form Tapping: Forming taps last longer because they don’t cut, reducing wear and extending tool life.
- Material Suitability:
- Cut Tapping: Suitable for a wide range of materials, including brittle ones like cast iron, but less effective in ductile materials.
- Form Tapping: Best for ductile materials (e.g., aluminum, stainless steel) that can be deformed without cracking.
At T&D Specialties, we choose between form and cut tapping based on the project’s requirements, material, and performance needs. For high-strength, cleanroom-compatible threads, form tapping is often the superior choice.
Benefits of Form Tapping
Form tapping offers numerous advantages that make it a preferred method for precision threading. Here are the key benefits:
1. Stronger Threads
- The cold-forming process work-hardens the material, increasing thread strength by up to 20–30% compared to cut threads. This is critical for applications like aerospace fasteners or medical implants that endure high loads or fatigue.
2. Chipless Operation
- No chips mean cleaner workpieces, reduced cleanup, and compatibility with cleanroom environments. This is a major advantage for medical or electronics applications.
3. Smoother Surface Finish
- Formed threads have a polished, burr-free finish, improving thread fit, reducing friction, and enhancing assembly performance.
4. Longer Tool Life
- Without the abrasive wear of cutting, form taps last significantly longer, reducing tooling costs and downtime for tool changes.
5. Improved Productivity
- Form tapping is faster in many cases, as there’s no need to manage chips or perform secondary cleaning. This boosts efficiency in high-volume production.
6. Versatility
- Form tapping works well in a variety of ductile materials, from soft aluminum to tough stainless steel, making it versatile for diverse industries.
7. Reduced Breakage Risk
- Form taps are less prone to breaking than cut taps because they don’t encounter the same cutting stresses, especially in deep or blind holes.
At T&D Specialties, we leverage form tapping to deliver threads that meet the stringent demands of our clients, ensuring strength, precision, and reliability.
Best Practices for Form Tapping
To achieve optimal results with form tapping, careful planning and execution are essential. Here are tips we follow at T&D Specialties:
- Precise Pre-Drill Size: Use the correct drill size for the thread (typically 5–15% larger than for cut tapping). Consult tap manufacturer charts to avoid over- or under-sized holes.
- Stable Workholding: Secure the workpiece firmly to prevent vibration or movement. Our T&D Micro Vise is ideal for holding small parts during form tapping, ensuring precision and repeatability.
- Proper Lubrication: Use high-pressure lubricants or forming-specific coolants to reduce friction and heat, especially in harder materials like stainless steel.
- Optimize Speeds and Feeds: Adjust spindle speed and feed rate to match the material and tap size. Too fast can cause material galling; too slow can reduce thread quality.
- Material Selection: Ensure the workpiece material is ductile enough for forming. Brittle materials like cast iron are better suited for cut tapping.
- Tool Maintenance: Inspect form taps for wear or material buildup, as galling can degrade thread quality. Clean and store taps properly to extend life.
- Thread Gauging: Verify thread accuracy with go/no-go gauges or other metrology tools to ensure compliance with specifications.
Challenges and Considerations
While form tapping is powerful, it has some limitations:
- Material Constraints: Not suitable for brittle or non-ductile materials, which may crack under deformation.
- Higher Forces: Form tapping requires more torque than cut tapping, necessitating robust machines and secure workholding.
- Initial Cost: Form taps can be more expensive than cut taps, though their longer life often offsets this cost.
- Learning Curve: Achieving consistent results requires experience, particularly for micro-threading or deep holes.
At T&D Specialties, our skilled machinists and advanced equipment overcome these challenges, ensuring flawless form-tapped threads every time.
Enhancing Form Tapping with the T&D Micro Vise
For small or intricate parts, stable workholding is critical to successful form tapping. Our T&D Micro Vise is designed to hold delicate components securely without marring surfaces, providing the rigidity needed for precise thread formation. Whether we’re tapping micro-threads in a medical device or small holes in an aerospace part, the T&D Micro Vise ensures repeatability and accuracy, making form tapping more reliable.
